Maintenance

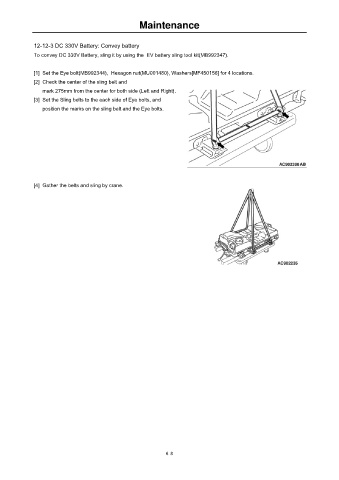

12-12-3 DC 330V Battery: Convey battery
To convey DC 330V Battery, sling it by using the EV battery sling tool kit(MB992347).
[1] Set the Eye bolt(MB992344), Hexagon nut(MU001480), Washers[MF450156] for 4 locations.
[2] Check the center of the sling belt and
mark 275mm from the center for both side (Left and Right).
[3] Set the Sling belts to the each side of Eye bolts, and
position the marks on the sling belt and the Eye bolts.
[4] Gather the belts and sling by crane.
