Maintenance

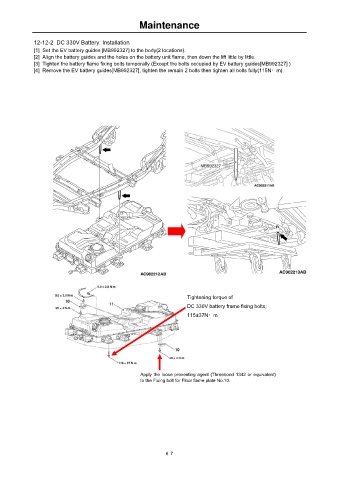

12-12-2 DC 330V Battery: Installation
[1] Set the EV battery guides [MB992327] to the body(2 locations).
[2] Align the battery guides and the holes on the battery unit flame, then down the lift little by little.
[3] Tighten the battery flame fixing bolts temporally (Except the bolts occupied by EV battery guides[MB992327] )
[4] Remove the EV battery guides[MB992327], tighten the remain 2 bolts then tighten all bolts fully(115N・m).

Tightening torque of
DC 330V battery frame fixing bolts;
115±37N・m

Apply the loose preventing agent (Threebond 1342 or equivalent)
to the Fixing bolt for Floor flame plate No.10.

６７
