KNX BASIC COURSE

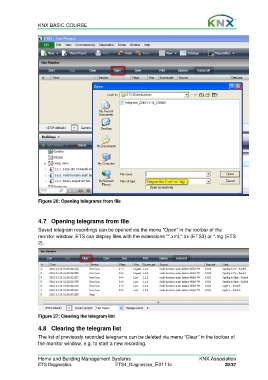

Figure 26: Opening telegrams from file
4.7 Opening telegrams from file
Saved telegram recordings can be opened via the menu “Open” in the toolbar of the
monitor window. ETS can display files with the extensions “*.xml,*.trx (ETS3) or *.hlg (ETS
2).
Figure 27: Clearing the telegram list
4.8 Clearing the telegram list
The list of previously recorded telegrams can be deleted via menu “Clear” in the toolbar of
the monitor window, e.g. to start a new recording.
Home and Building Management Systems KNX Association
ETS Diagnostics ETS4_Diagnostics_E0111c 20/37
