4.5.4 Conditions

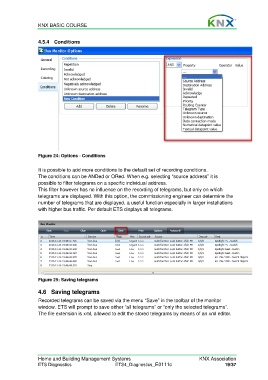

Figure 24: Options - Conditions

It is possible to add more conditions to the default set of recording conditions.
The conditions can be ANDed or ORed. When e.g. selecting “source address” it is
possible to filter telegrams on a specific individual address.
This filter however has no influence on the recording of telegrams, but only on which
telegrams are displayed. With this option, the commissioning engineer can determine the
number of telegrams that are displayed, a useful function especially in larger installations
with higher bus traffic. Per default ETS displays all telegrams.

Figure 25: Saving telegrams

4.6 Saving telegrams
Recorded telegrams can be saved via the menu “Save” in the toolbar of the monitor
window. ETS will prompt to save either “all telegrams” or “only the selected telegrams”.
The file extension is xml, allowed to edit the stored telegrams by means of an xml editor.
