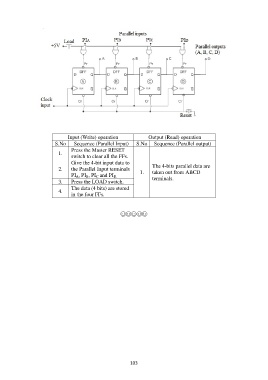

Input (Write) operation Output (Read) operation
S.No Sequence (Parallel Input) S.No Sequence (Parallel output)
Press the Master RESET
1.
switch to clear all the FFs.
Give the 4-bit input data to
2. the Parallel Input terminals 1. The 4-bits parallel data are
taken out from ABCD
PI A, PI B, PI C and PI D.
3. Press the LOAD switch. terminals.
The data (4 bits) are stored
4.
in the four FFs.
☺☺☺☺☺
