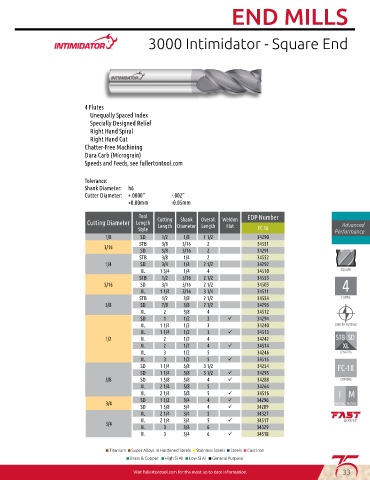

Page 35 - 75th-Online-Anniversary-Catalog

END MILLS

3000 Intimidator - Square End

4 Flutes
Unequally Spaced Index
Specially Designed Relief
Right Hand Spiral
Right Hand Cut
Chatter-Free Machining
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Weldon
Flat
Length Diameter Length
Style FC 18
1/8 SD 1/2 1/8 1 1/2 34290
STB 3/8 3/16 2 34551
3/16
SD 5/8 3/16 2 34291
STB 3/8 1/4 2 34552
1/4 SD 3/4 1/4 2 1/2 34292
XL 1 3/4 1/4 4 34510
STB 1/2 5/16 2 1/2 34553
5/16 SD 3/4 5/16 2 1/2 34503
XL 1 1/4 5/16 3 1/4 34511
STB 1/2 3/8 2 1/2 34554
3/8 SD 7/8 3/8 2 1/2 34293
XL 2 3/8 4 34512
SD 1 1/2 3 ü 34294
XL 1 1/4 1/2 3 34240
XL 1 1/4 1/2 3 ü 34513
1/2 XL 2 1/2 4 34242
XL 2 1/2 4 ü 34514
XL 3 1/2 5 34246
XL 3 1/2 5 ü 34515
SD 1 1/4 5/8 3 1/2 34254
SD 1 1/4 5/8 3 1/2 ü 34295
5/8 SD 1 5/8 5/8 4 ü 34288
XL 2 1/4 5/8 5 34264
XL 2 1/4 5/8 5 ü 34516 I M
SD 1 1/2 3/4 4 ü 34296
3/4 IMPERIAL METRIC
SD 1 5/8 3/4 4 ü 34289
XL 2 1/4 3/4 5 34327
XL 2 1/4 3/4 5 ü 34517
3/4
XL 3 3/4 6 34329
XL 3 3/4 6 ü 34518

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose
