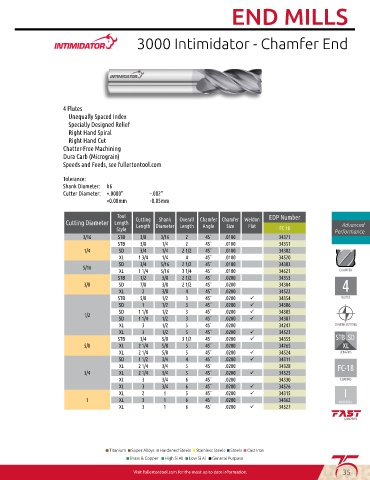

Page 37 - 75th-Online-Anniversary-Catalog

END MILLS

3000 Intimidator - Chamfer End

4 Flutes
Unequally Spaced Index
Specially Designed Relief
Right Hand Spiral
Right Hand Cut
Chatter-Free Machining
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Chamfer Chamfer Weldon Advanced
Angle
Size
Flat
Length Diameter Length
Style FC 18 Performance
3/16 STB 3/8 3/16 2 45˚ .0100 34371
STB 3/8 1/4 2 45˚ .0100 34351
1/4 SD 3/4 1/4 2 1/2 45˚ .0100 34302
XL 1 3/4 1/4 4 45˚ .0100 34520
SD 3/4 5/16 2 1/2 45˚ .0100 34303
5/16
XL 1 1/4 5/16 3 1/4 45˚ .0100 34521
STB 1/2 3/8 2 1/2 45˚ .0200 34353
3/8 SD 7/8 3/8 2 1/2 45˚ .0200 34304
XL 2 3/8 4 45˚ .0200 34522
STB 5/8 1/2 3 45˚ .0200 ü 34354
SD 1 1/2 3 45˚ .0200 ü 34306
SD 1 1/8 1/2 3 45˚ .0200 ü 34305
1/2
SD 1 1/4 1/2 3 45˚ .0200 ü 34307
XL 3 1/2 5 45˚ .0200 34247
XL 3 1/2 5 45˚ .0200 ü 34523
STB 3/4 5/8 3 1/2 45˚ .0200 ü 34355
5/8 XL 2 1/4 5/8 5 45˚ .0200 34265
XL 2 1/4 5/8 5 45˚ .0200 ü 34524
SD 1 1/2 3/4 4 45˚ .0200 ü 34311
XL 2 1/4 3/4 5 45˚ .0200 34328
3/4 XL 2 1/4 3/4 5 45˚ .0200 ü 34525
XL 3 3/4 6 45˚ .0200 34330
XL 3 3/4 6 45˚ .0200 ü 34526
XL 2 1 5 45˚ .0200 ü 34315 I
1 XL 3 1 6 45˚ .0200 34362 IMPERIAL
XL 3 1 6 45˚ .0200 ü 34527

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose

Visit fullertontool.com for the most up to date information. 35
