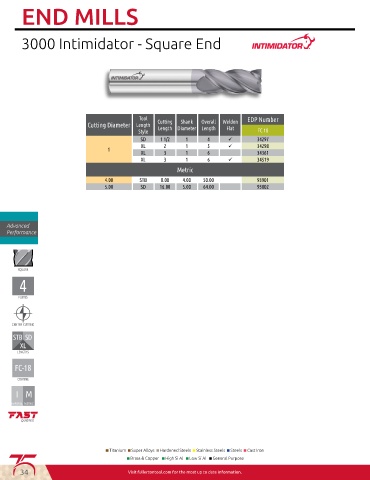

END MILLS




        3000 Intimidator - Square End















                                               Tool   Cutting   Shank   Overall   Weldon   EDP Number
                              Cutting Diameter  Length   Length Diameter Length  Flat
                                               Style                                  FC 18
                                                SD    1 1/2   1       4      ü        34297
                                                XL     2      1       5      ü        34298
                                     1
                                                XL     3      1       6               34361
                                                XL     3      1       6      ü        34519
                                                            Metric
                                    4.00       STB    8.00   4.00   50.00             93901
                                    5.00        SD    16.00  5.00   64.00             93802






   Advanced
   Performance































      I M

     IMPERIAL METRIC







                                    ■ Titanium  ■ Super Alloys  ■ Hardened Steels  ■ Stainless Steels  ■ Steels  ■ Cast Iron
                                            ■ Brass & Copper   ■ High Si Al   ■ Low Si Al   ■ General Purpose
        34                                 Visit fullertontool.com for the most up to date information.
