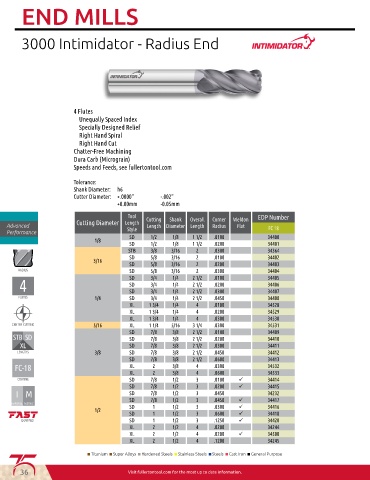

Page 38 - 75th-Online-Anniversary-Catalog

END MILLS

3000 Intimidator - Radius End

4 Flutes
Unequally Spaced Index
Specially Designed Relief
Right Hand Spiral
Right Hand Cut
Chatter-Free Machining
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner Weldon
Advanced Length Diameter Length Radius Flat FC 18
Performance Style
1/8 SD 1/2 1/8 1 1/2 .0100 34400
SD 1/2 1/8 1 1/2 .0200 34401
STB 3/8 3/16 2 .0300 34364
SD 5/8 3/16 2 .0100 34402
3/16
SD 5/8 3/16 2 .0200 34403
SD 5/8 3/16 2 .0300 34404
SD 3/4 1/4 2 1/2 .0100 34405
SD 3/4 1/4 2 1/2 .0200 34406
SD 3/4 1/4 2 1/2 .0300 34407
1/4 SD 3/4 1/4 2 1/2 .0450 34408
XL 1 3/4 1/4 4 .0100 34528
XL 1 3/4 1/4 4 .0200 34529
XL 1 3/4 1/4 4 .0300 34530
5/16 XL 1 1/4 5/16 3 1/4 .0300 34531
SD 7/8 3/8 2 1/2 .0100 34409
SD 7/8 3/8 2 1/2 .0200 34410
SD 7/8 3/8 2 1/2 .0300 34411
3/8 SD 7/8 3/8 2 1/2 .0450 34412
SD 7/8 3/8 2 1/2 .0600 34413
XL 2 3/8 4 .0300 34532
XL 2 3/8 4 .0600 34533
SD 7/8 1/2 3 .0100 ü 34414
SD 7/8 1/2 3 .0200 ü 34415
I M SD 7/8 1/2 3 .0450 34232
SD 7/8 1/2 3 .0450 ü 34417
IMPERIAL METRIC SD 1 1/2 3 .0300 ü 34416
1/2
SD 1 1/2 3 .0600 ü 34418
SD 1 1/2 3 .1250 ü 34420
XL 2 1/2 4 .0200 34244
XL 2 1/2 4 .0200 ü 34500
XL 2 1/2 4 .1200 34245

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

36 Visit fullertontool.com for the most up to date information.
