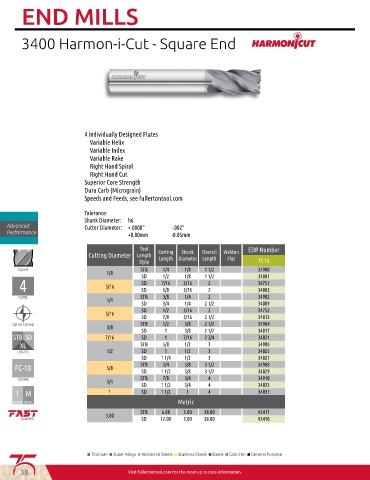

Page 40 - 75th-Online-Anniversary-Catalog

END MILLS

3400 Harmon-i-Cut - Square End

4 Individually Designed Flutes
Variable Helix
Variable Index
Variable Rake
Right Hand Spiral
Right Hand Cut
Superior Core Strength
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Advanced Cutter Diameter: +.0000” -.002”
Performance +0.00mm -0.05mm

Tool Cutting Shank Overall Weldon EDP Number
Cutting Diameter Length Length Diameter Length Flat
Style FC 18
STB 1/4 1/8 1 1/2 34900
1/8
SD 1/2 1/8 1 1/2 34001
SD 7/16 3/16 2 34751
3/16
SD 5/8 3/16 2 34005
STB 3/8 1/4 2 34902
1/4
SD 3/4 1/4 2 1/2 34009
SD 1/2 5/16 2 34752
5/16
SD 7/8 5/16 2 1/2 34013
STB 1/2 3/8 2 1/2 34904
3/8
SD 1 3/8 2 1/2 34017
7/16 SD 1 7/16 2 3/4 34021
STB 5/8 1/2 3 34906
1/2 SD 1 1/2 3 34025
SD 1 1/4 1/2 3 34027
STB 3/4 5/8 3 1/2 34908
5/8
SD 1 1/2 5/8 3 1/2 34029
STB 7/8 3/4 4 34910
3/4
SD 1 1/2 3/4 4 34033
I M 1 SD 1 1/2 1 4 34037
Metric
IMPERIAL METRIC
STB 6.00 3.00 38.00 92417
3.00
SD 12.00 3.00 38.00 92410

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose
