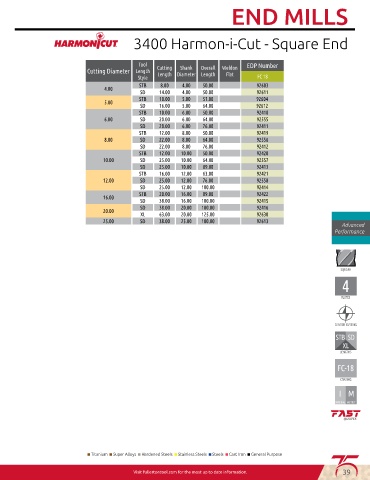

Page 41 - 75th-Online-Anniversary-Catalog

END MILLS

3400 Harmon-i-Cut - Square End

Tool Cutting Shank Overall Weldon EDP Number
Cutting Diameter Length Length Diameter Length Flat
Style FC 18
STB 8.00 4.00 50.00 92603
4.00
SD 14.00 4.00 50.00 92611
STB 10.00 5.00 51.00 92604
5.00
SD 16.00 5.00 64.00 92612
STB 10.00 6.00 50.00 92418
6.00 SD 20.00 6.00 64.00 92555
SD 20.00 6.00 76.00 92411
STB 12.00 8.00 50.00 92419
8.00 SD 22.00 8.00 64.00 92556
SD 22.00 8.00 76.00 92412
STB 12.00 10.00 50.00 92420
10.00 SD 25.00 10.00 64.00 92557
SD 25.00 10.00 89.00 92413
STB 16.00 12.00 63.00 92421
12.00 SD 25.00 12.00 76.00 92558
SD 25.00 12.00 100.00 92414
STB 20.00 16.00 89.00 92422
16.00
SD 38.00 16.00 100.00 92415
SD 38.00 20.00 100.00 92416
20.00
XL 63.00 20.00 125.00 92630
25.00 SD 38.00 25.00 100.00 92613
Advanced
Performance

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose

Visit fullertontool.com for the most up to date information. 39
