Legacy Controls

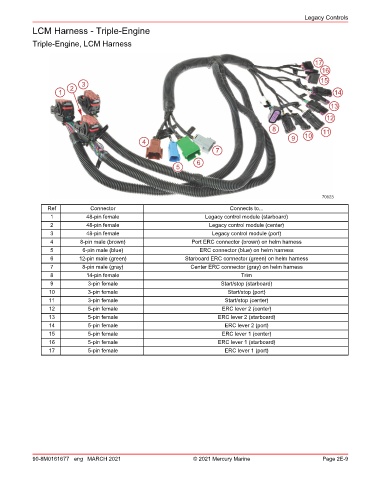

LCM Harness ‑ Triple‑Engine
Triple‑Engine, LCM Harness
17
16
15
3
2
1 14
13
12
8 11
9 10
4
7
6
5
70823
Ref Connector Connects to...
1 48‑pin female Legacy control module (starboard)
2 48‑pin female Legacy control module (center)
3 48‑pin female Legacy control module (port)
4 8‑pin male (brown) Port ERC connector (brown) on helm harness
5 6‑pin male (blue) ERC connector (blue) on helm harness
6 12‑pin male (green) Starboard ERC connector (green) on helm harness
7 8‑pin male (gray) Center ERC connector (gray) on helm harness
8 14‑pin female Trim
9 3‑pin female Start/stop (starboard)
10 3‑pin female Start/stop (port)
11 3‑pin female Start/stop (center)
12 5‑pin female ERC lever 2 (center)
13 5‑pin female ERC lever 2 (starboard)
14 5‑pin female ERC lever 2 (port)
15 5‑pin female ERC lever 1 (center)
16 5‑pin female ERC lever 1 (starboard)
17 5‑pin female ERC lever 1 (port)
90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 2E-9
