Legacy Controls

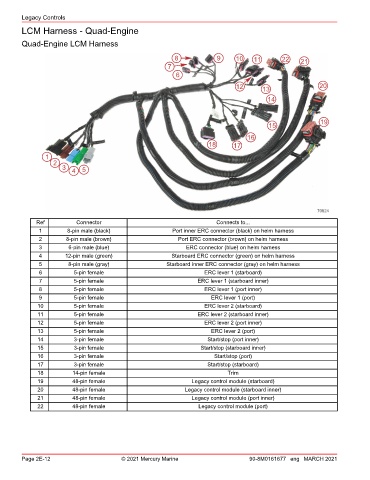

LCM Harness ‑ Quad‑Engine
Quad‑Engine LCM Harness
8 9 10 11 22 21
7
6
12 13 20
14
19
15
16
18 17
1
2
3
4 5
70824
Ref Connector Connects to...
1 8‑pin male (black) Port inner ERC connector (black) on helm harness
2 8‑pin male (brown) Port ERC connector (brown) on helm harness
3 6‑pin male (blue) ERC connector (blue) on helm harness
4 12‑pin male (green) Starboard ERC connector (green) on helm harness
5 8‑pin male (gray) Starboard inner ERC connector (gray) on helm harness
6 5‑pin female ERC lever 1 (starboard)
7 5‑pin female ERC lever 1 (starboard inner)
8 5‑pin female ERC lever 1 (port inner)
9 5‑pin female ERC lever 1 (port)
10 5‑pin female ERC lever 2 (starboard)
11 5‑pin female ERC lever 2 (starboard inner)
12 5‑pin female ERC lever 2 (port inner)
13 5‑pin female ERC lever 2 (port)
14 3‑pin female Start/stop (port inner)
15 3‑pin female Start/stop (starboard inner)
16 3‑pin female Start/stop (port)
17 3‑pin female Start/stop (starboard)
18 14‑pin female Trim
19 48‑pin female Legacy control module (starboard)
20 48‑pin female Legacy control module (starboard inner)
21 48‑pin female Legacy control module (port inner)
22 48‑pin female Legacy control module (port)
