Legacy Controls

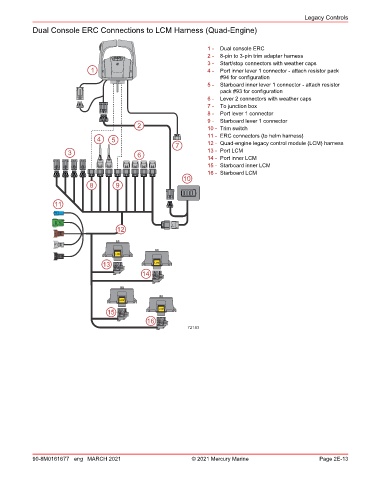

Dual Console ERC Connections to LCM Harness (Quad‑Engine)

1 - Dual console ERC
2 - 8‑pin to 3‑pin trim adapter harness
3 - Start/stop connectors with weather caps
1 4 - Port inner lever 1 connector ‑ attach resistor pack
#94 for configuration
5 - Starboard inner lever 1 connector ‑ attach resistor
pack #93 for configuration
6 - Lever 2 connectors with weather caps
7 - To junction box
8 - Port lever 1 connector
9 - Starboard lever 1 connector
2 10 - Trim switch
11 - ERC connectors (to helm harness)
4 5 12 - Quad‑engine legacy control module (LCM) harness
7
3 6 13 - Port LCM
14 - Port inner LCM
15 - Starboard inner LCM
16 - Starboard LCM
10
8 9

11
11
17

12

LCM
13 LCM
14

LCM
15 LCM
16
72183

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 2E-13
