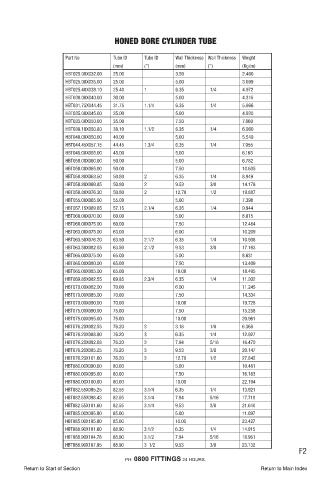

Page 132 - Fluid Fitting 2018_extended

HONED BORE CYLINDER TUBE

Part No Tube ID Tube ID Wall Thickness Wall Thickness Weight
(mm) (”) (mm) (”) (Kg/m)
HBT025.00X032.00 25.00 3.50 2.460
HBT025.00X035.00 25.00 5.00 3.699
HBT025.40X038.10 25.40 1 6.35 1/4 4.972
HBT030.00X040.00 30.00 5.00 4.316
HBT031.75X044.45 31.75 1.1/4 6.35 1/4 5.966
HBT035.00X045.00 35.00 5.00 4.930
HBT035.00X050.00 35.00 7.50 7.860
HBT038.10X050.80 38.10 1.1/2 6.35 1/4 6.960
HBT040.00X050.00 40.00 5.00 5.549
HBT044.45X057.15 44.45 1.3/4 6.35 1/4 7.955
HBT045.00X055.00 45.00 5.00 6.165
HBT050.00X060.00 50.00 5.00 6.782
HBT050.00X065.00 50.00 7.50 10.635
HBT050.80X063.50 50.80 2 6.35 1/4 8.949
HBT050.80X069.85 50.80 2 9.53 3/8 14.178
HBT050.80X076.20 50.80 2 12.70 1/2 19.887
HBT055.00X065.00 55.00 5.00 7.398
HBT057.15X069.85 57.15 2.1/4 6.35 1/4 9.944
HBT060.00X070.00 60.00 5.00 8.015
HBT060.00X075.00 60.00 7.50 12.484
HBT063.00X075.00 63.00 6.00 10.209
HBT063.50X076.20 63.50 2.1/2 6.35 1/4 10.938
HBT063.50X082.55 63.50 2.1/2 9.53 3/8 17.163
HBT065.00X075.00 65.00 5.00 8.631
HBT065.00X080.00 65.00 7.50 13.409
HBT065.00X085.00 65.00 10.00 18.495
HBT069.85X082.55 69.85 2.3/4 6.35 1/4 11.932
HBT070.00X082.00 70.00 6.00 11.245
HBT070.00X085.00 70.00 7.50 14.334
HBT070.00X090.00 70.00 10.00 19.728
HBT075.00X090.00 75.00 7.50 15.258
HBT075.00X095.00 75.00 10.00 20.961
HBT076.20X082.55 76.20 3 3.18 1/8 6.368
HBT076.20X088.90 76.20 3 6.35 1/4 12.927
HBT076.20X092.08 76.20 3 7.94 5/16 16.470
HBT076.20X095.25 76.20 3 9.53 3/8 20.147
HBT076.20X101.60 76.20 3 12.70 1/2 27.842
HBT080.00X090.00 80.00 5.00 10.481
HBT080.00X095.00 80.00 7.50 16.183
HBT080.00X100.00 80.00 10.00 22.194
HBT082.55X095.25 82.55 3.1/4 6.35 1/4 13.921
HBT082.55X098.43 82.55 3.1/4 7.94 5/16 17.718
HBT082.55X101.60 82.55 3.1/4 9.53 3/8 21.640
HBT085.00X095.00 85.00 5.00 11.097
HBT085.00X105.00 85.00 10.00 23.427
HBT088.90X101.60 88.90 3.1/2 6.35 1/4 14.915
HBT088.90X104.78 88.90 3.1/2 7.94 5/16 18.961
HBT088.90X107.95 88.90 3 1/2 9.53 3/8 23.132
F2
