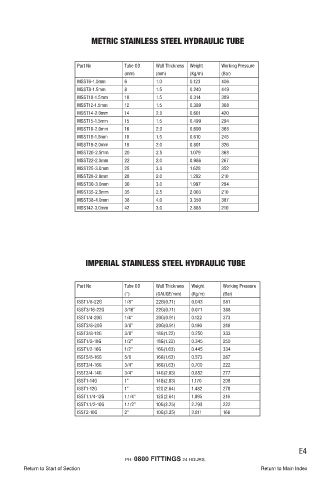

Page 130 - Fluid Fitting 2018_extended

METRIC STAINLESS STEEL HYDRAULIC TUBE

Part No Tube OD Wall Thickness Weight Working Pressure
(mm) (mm) (Kg/m) (Bar)
MSST6-1.0mm 6 1.0 0.123 406
MSST8-1.5mm 8 1.5 0.240 449
MSST10-1.5mm 10 1.5 0.314 389
MSST12-1.5mm 12 1.5 0.389 368
MSST14-2.0mm 14 2.0 0.601 420
MSST15-1.5mm 15 1.5 0.499 294
MSST16-2.0mm 16 2.0 0.690 368
MSST18-1.5mm 18 1.5 0.610 245
MSST18-2.0mm 18 2.0 0.801 326
MSST20-2.5mm 20 2.5 1.079 368
MSST22-2.0mm 22 2.0 0.986 267
MSST25-3.0mm 25 3.0 1.628 352
MSST28-2.0mm 28 2.0 1.282 210
MSST30-3.0mm 30 3.0 1.997 294
MSST35-2.5mm 35 2.5 2.003 210
MSST38-4.0mm 38 4.0 3.350 387
MSST42-3.0mm 42 3.0 2.885 210

IMPERIAL STAINLESS STEEL HYDRAULIC TUBE

Part No Tube OD Wall Thickness Weight Working Pressure
(”) (GAUGE/mm) (Kg/m) (Bar)
ISST1/8-22G 1/8” 22G(0.71) 0.043 581
ISST3/16-22G 3/16” 22G(0.71) 0.071 388
ISST1/4-20G 1/4” 20G(0.91) 0.122 373
ISST3/8-20G 3/8” 20G(0.91) 0.190 248
ISST3/8-18G 3/8” 18G(1.22) 0.250 333
ISST1/2-18G 1/2” 18G(1.22) 0.345 250
ISST1/2-16G 1/2” 16G(1.63) 0.445 334
ISST5/8-16G 5/8 16G(1.63) 0.573 267
ISST3/4-16G 3/4” 16G(1.63) 0.700 222
ISST3/4-14G 3/4” 14G(2.03) 0.852 277
ISST1-14G 1” 14G(2.03) 1.170 208
ISST1-12G 1” 12G(2.64) 1.482 270
ISST1.1/4-12G 1.1/4” 12G(2.64) 1.895 216
ISST1.1/2-10G 1.1/2” 10G(3.25) 2.793 222
ISST2-10G 2” 10G(3.25) 3.811 166

E4
