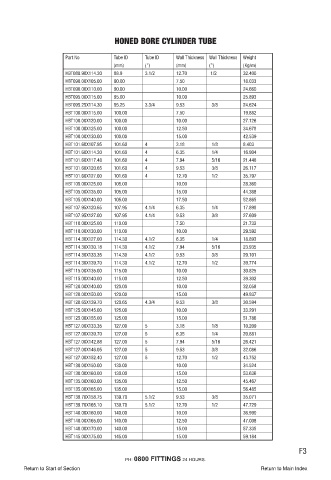

HONED BORE CYLINDER TUBE

Part No Tube ID Tube ID Wall Thickness Wall Thickness Weight
(mm) (”) (mm) (”) (Kg/m)
HBT088.90X114.30 88.9 3.1/2 12.70 1/2 32.400
HBT090.00X105.00 90.00 7.50 18.033
HBT090.00X110.00 90.00 10.00 24.660
HBT095.00X115.00 95.00 10.00 25.893
HBT095.25X114.30 95.25 3.3/4 9.53 3/8 24.624
HBT100.00X115.00 100.00 7.50 19.882
HBT100.00X120.00 100.00 10.00 27.126
HBT100.00X125.00 100.00 12.50 34.678
HBT100.00X130.00 100.00 15.00 42.539
HBT101.60X107.95 101.60 4 3.18 1/8 8.403
HBT101.60X114.30 101.60 4 6.35 1/4 16.904
HBT101.60X117.48 101.60 4 7.94 5/16 21.448
HBT101.60X120.65 101.60 4 9.53 3/8 26.117
HBT101.60X127.00 101.60 4 12.70 1/2 35.797
HBT105.00X125.00 105.00 10.00 28.360
HBT105.00X135.00 105.00 15.00 44.388
HBT105.00X140.00 105.00 17.50 52.865
HBT107.95X120.65 107.95 4.1/4 6.35 1/4 17.898
HBT107.95X127.00 107.95 4.1/4 9.53 3/8 27.609
HBT110.00X125.00 110.00 7.50 21.732
HBT110.00X130.00 110.00 10.00 29.592
HBT114.30X127.00 114.30 4.1/2 6.35 1/4 18.893
HBT114.30X130.18 114.30 4.1/2 7.94 5/16 23.935
HBT114.30X133.35 114.30 4.1/2 9.53 3/8 29.101
HBT114.30X139.70 114.30 4.1/2 12.70 1/2 39.774
HBT115.00X135.00 115.00 10.00 30.825
HBT115.00X140.00 115.00 12.50 39.302
HBT120.00X140.00 120.00 10.00 32.058
HBT120.00X150.00 120.00 15.00 49.937
HBT120.65X139.70 120.65 4.3/4 9.53 3/8 30.594
HBT125.00X145.00 125.00 10.00 33.291
HBT125.00X155.00 125.00 15.00 51.786
HBT127.00X133.35 127.00 5 3.18 1/8 10.209
HBT127.00X139.70 127.00 5 6.35 1/4 20.881
HBT127.00X142.88 127.00 5 7.94 5/16 26.421
HBT127.00X146.05 127.00 5 9.53 3/8 32.086
HBT127.00X152.40 127.00 5 12.70 1/2 43.752
HBT130.00X150.00 130.00 10.00 34.524
HBT130.00X160.00 130.00 15.00 53.636
HBT135.00X160.00 135.00 12.50 45.467
HBT135.00X165.00 135.00 15.00 56.485
HBT139.70X158.75 139.70 5.1/2 9.53 3/8 35.071
HBT139.70X165.10 139.70 5.1/2 12.70 1/2 47.729
HBT140.00X160.00 140.00 10.00 36.990
HBT140.00X165.00 140.00 12.50 47.008
HBT140.00X170.00 140.00 15.00 57.335
HBT145.00X175.00 145.00 15.00 59.184
