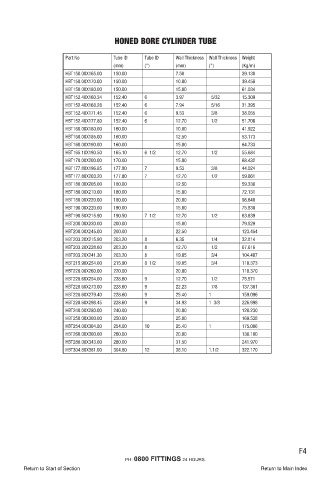

HONED BORE CYLINDER TUBE

Part No Tube ID Tube ID Wall Thickness Wall Thickness Weight
(mm) (”) (mm) (”) (Kg/m)
HBT150.00X165.00 150.00 7.50 29.130
HBT150.00X170.00 150.00 10.00 39.456
HBT150.00X180.00 150.00 15.00 61.034
HBT152.40X160.34 152.40 6 3.97 5/32 15.309
HBT152.40X168.28 152.40 6 7.94 5/16 31.395
HBT152.40X171.45 152.40 6 9.53 3/8 38.055
HBT152.40X177.80 152.40 6 12.70 1/2 51.706
HBT160.00X180.00 160.00 10.00 41.922
HBT160.00X185.00 160.00 12.50 53.173
HBT160.00X190.00 160.00 15.00 64.733
HBT165.10X190.50 165.10 6 1/2 12.70 1/2 55.684
HBT170.00X200.00 170.00 15.00 68.432
HBT177.80X196.85 177.80 7 9.53 3/8 44.024
HBT177.80X203.20 177.80 7 12.70 1/2 59.661
HBT180.00X205.00 180.00 12.50 59.338
HBT180.00X210.00 180.00 15.00 72.131
HBT180.00X220.00 180.00 20.00 98.640
HBT190.00X220.00 190.00 15.00 75.830
HBT190.50X215.90 190.50 7 1/2 12.70 1/2 63.639
HBT200.00X230.00 200.00 15.00 79.529
HBT200.00X245.00 200.00 22.50 123.454
HBT203.20X215.90 203.20 8 6.35 1/4 32.814
HBT203.20X228.60 203.20 8 12.70 1/2 67.616
HBT203.20X241.30 203.20 8 19.05 3/4 104.407
HBT215.90X254.00 215.90 8 1/2 19.05 3/4 110.373
HBT220.00X260.00 220.00 20.00 118.370
HBT228.60X254.00 228.60 9 12.70 1/2 75.571
HBT228.60X273.00 228.60 9 22.23 7/8 137.301
HBT228.60X279.40 228.60 9 25.40 1 159.096
HBT228.60X298.45 228.60 9 34.93 1 3/8 226.998
HBT240.00X280.00 240.00 20.00 128.230
HBT250.00X300.00 250.00 25.00 169.538
HBT254.00X304.80 254.00 10 25.40 1 175.006
HBT260.00X300.00 260.00 20.00 138.100
HBT280.00X343.00 280.00 31.50 241.970
HBT304.80X381.00 304.80 12 38.10 1.1/2 322.170
