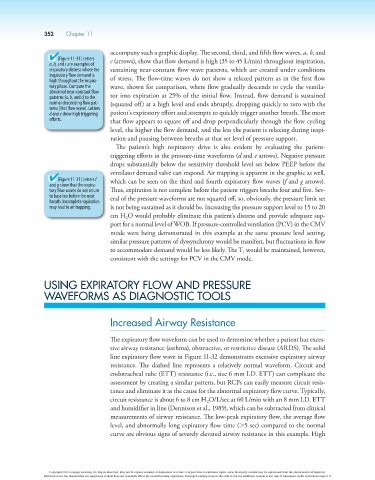

                                            accompany such a graphic display. The second, third, and fifth flow waves, a, b, and
                          (Figure 11-31) Letters   c (arrows), show that flow demand is high (35 to 45 L/min) throughout inspiration,
                        a, b, and c are examples of
                        respiratory distress where the   sustaining near-constant flow wave patterns, which are created under conditions
                        inspiratory flow demand is
                        high throughout the inspira-  of stress. The flow-time waves do not show a relaxed pattern as in the first flow
                        tory phase. Compare the   wave, shown for comparison, where flow gradually descends to cycle the ventila-
                        abnormal near-constant flow
                        patterns (a, b, and c) to the   tor into expiration at 25% of the initial flow. Instead, flow demand is sustained
                        normal descending flow pat-  (squared off) at a high level and ends abruptly, dropping quickly to zero with the
                        terns (first flow wave). Letters
                        d and e show high triggering   patient’s expiratory effort and attempts to quickly trigger another breath. The more
                        efforts.            that flow appears to square off and drop perpendicularly through the flow cycling
                                            level, the higher the flow demand, and the less the patient is relaxing during inspi-
                                            ration and pausing between breaths at that set level of pressure support.
                                             The  patient’s  high  respiratory  drive  is  also  evident  by  evaluating  the  patient-
                                            triggering efforts in the pressure-time waveforms (d and e arrows). Negative pressure
                                            drops substantially below the sensitivity threshold level set below PEEP before the
                                            ventilator demand valve can respond. Air trapping is apparent in the graphic as well,
                          (Figure 11-31) Letters f   which can be seen on the third and fourth expiratory flow waves (f and g arrows).
                        and g show that the expira-
                        tory flow waves do not return   Thus, expiration is not complete before the patient triggers breaths four and five. Sev-
                        to baseline before the next   eral of the pressure waveforms are not squared off, so, obviously, the pressure limit set
                        breath. Incomplete expiration
                        may lead to air trapping.  is not being sustained as it should be. Increasing the pressure support level to 15 to 20
                                            cm H O would probably eliminate this patient’s distress and provide adequate sup-
                                                 2
                                            port for a normal level of WOB. If pressure-controlled ventilation (PCV) in the CMV
                                            mode were being demonstrated in this example at the same pressure level setting,
                                            similar pressure patterns of dyssynchrony would be manifest, but fluctuations in flow
                                            to accommodate demand would be less likely. The T  would be maintained, however,
                                                                                       I
                                            consistent with the settings for PCV in the CMV mode.



                      USING EXPIRATORY FLOW AND PRESSURE
                      WAVEFORMS AS DIAGNOSTIC TOOLS



                                            Increased Airway Resistance


                                            The expiratory flow waveform can be used to determine whether a patient has exces-
                                            sive airway resistance (asthma), obstructive, or restrictive disease (ARDS). The solid
                                            line expiratory flow wave in Figure 11-32 demonstrates excessive expiratory airway
                                            resistance. The dashed line represents a relatively normal waveform. Circuit and
                                            endotracheal tube (ETT) resistance (i.e., size 6 mm I.D. ETT) can complicate the
                                            assessment by creating a similar pattern, but RCPs can easily measure circuit resis-
                                            tance and eliminate it as the cause for the abnormal expiratory flow curve. Typically,
                                            circuit resistance is about 6 to 8 cm H O/L/sec at 60 L/min with an 8 mm I.D. ETT
                                                                           2
                                            and humidifier in line (Dennison et al., 1989), which can be subtracted from clinical
                                            measurements of airway resistance. The low-peak expiratory flow, the average flow
                                            level, and abnormally long expiratory flow time (.5 sec) compared to the normal
                                            curve are obvious signs of severely elevated airway resistance in this example. High
