Legacy Controls

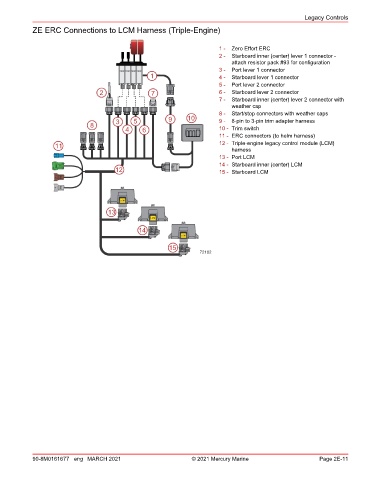

ZE ERC Connections to LCM Harness (Triple‑Engine)
1 - Zero Effort ERC
2 - Starboard inner (center) lever 1 connector ‑
attach resistor pack #93 for configuration
3 - Port lever 1 connector
1 4 - Starboard lever 1 connector
5 - Port lever 2 connector
2 7 6 - Starboard lever 2 connector
7 - Starboard inner (center) lever 2 connector with
weather cap
8 - Start/stop connectors with weather caps
3 5 9 10 9 - 8‑pin to 3‑pin trim adapter harness
8
4 6 10 - Trim switch
11 - ERC connectors (to helm harness)
12 - Triple‑engine legacy control module (LCM)
11
harness
13 - Port LCM
14 - Starboard inner (center) LCM
12 15 - Starboard LCM
LCM
13
LCM
14
LCM
15
72182
90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 2E-11
