Accessories

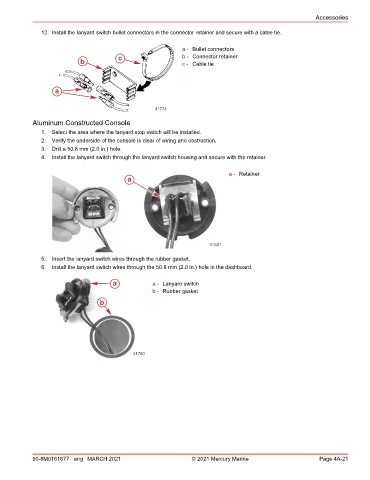

12. Install the lanyard switch bullet connectors in the connector retainer and secure with a cable tie.

a - Bullet connectors

b c b - Connector retainer
c - Cable tie

a

41774
Aluminum Constructed Console
1. Select the area where the lanyard stop switch will be installed.
2. Verify the underside of the console is clear of wiring and obstruction.
3. Drill a 50.8 mm (2.0 in.) hole.
4. Install the lanyard switch through the lanyard switch housing and secure with the retainer.

a - Retainer
a

41521
5. Insert the lanyard switch wires through the rubber gasket.
6. Install the lanyard switch wires through the 50.8 mm (2.0 in.) hole in the dashboard.

a a - Lanyard switch
b - Rubber gasket

b

41780

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 4A-21
